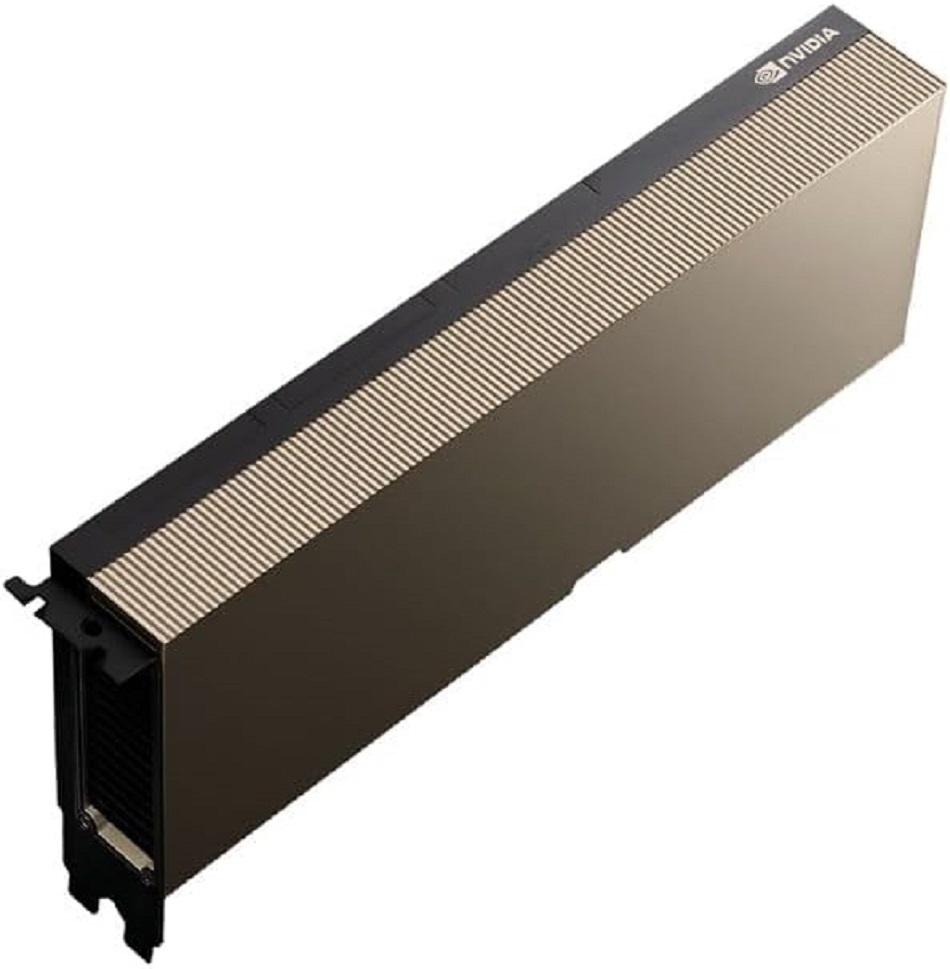

Nvidia H800 Tensor Core GPU PCIE

The H800 PCIe 80 GB is a professional graphics card by NVIDIA launched on March 21st 2023 Built on the 5 nm process and based on the GH100 graphics processor the card does not support DirectX Since H800 PCIe 80 GB does not support DirectX 11 or DirectX 12 it might not be able to run all the latest games The GH100 graphics processor is a large chip with a die area of 814 mm and 80000 million transistors Unlike the fully unlocked H100 NVL 94 GB which uses the same GPU but has all 16896 shaders enabled NVIDIA has disabled some shading units on the H800 PCIe 80 GB to reach the products target shader count It features 14592 shading units 456 texture mapping units and 24 ROPs Also included are 456 tensor cores which help improve the speed of machine learning applications NVIDIA has paired 80 GB HBM2e memory with the H800 PCIe 80 GB which are connected using a 5120bit memory interface The GPU is operating at a frequency of 1095 MHz which can be boosted up to 1755 MHz memory is running at 1593 MHz

Being a dualslot card the NVIDIA H800 PCIe 80 GB draws power from 1x 16pin power connector with power draw rated at 350 W maximum This device has no display connectivity as it is not designed to have monitors connected to it H800 PCIe 80 GB is connected to the rest of the system using a PCIExpress 50 x16 interface The card dualslot cooling solution
